DSP－I塑料安瓶灌封包裝機
發布日期：2018-06-13 14:47:15 點擊：9939
特點：
PLC控制，無級變頻調速。
放倦、安瓶成型、灌裝、封尾、打批號、切尾、分切等22個工位由程序控制，連續自動完成。
人機界面裝置，操作簡單明了。
灌裝頭不滴漏，不起泡沫，不溢出。
采用優質不銹鋼材料，符合GMP標準。
主要元器件均采用進口。
適用范圍：
液態藥品、保健品、食品、化妝品及其它工業領域類似產品的包裝。
技術參數：
最大成型深度：10mm
沖裁次數：≥10-18次/分
包裝效率：10-18次/分 8-15支/板
板塊尺寸：長度315mm（最大） 寬度78-108mm（最大）
包裝材料：PVC/PE0.3×345mm
灌裝容量：5-25ml/支 0.3×345mm
耗氣量：110L/min
耗水量：6L/min
電源總功率：12KW
電壓：380V/50Hz
外形尺寸（長×寬×高）：3870×1780×1850
重量（公斤）：3400

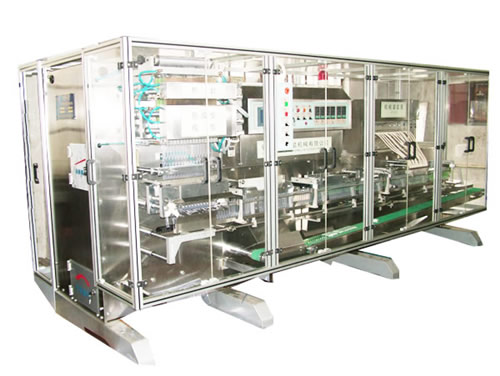

DSP-I Plastic AMP Filling & Sealing Packing Machine
Features:
PLC control, frequency variation and stepless speed

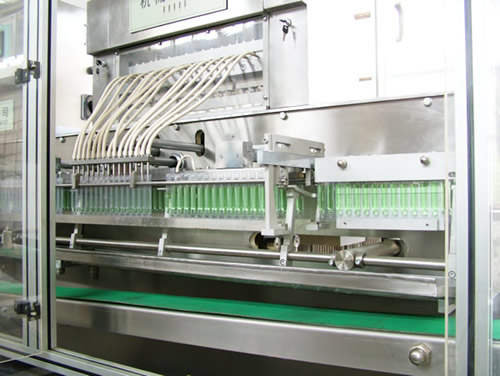

22 positions are controlled by procedures and continuously finished by automatically including spreading rolls, AMP bottle forming, filling and packaging, sealing the end, printing batch numbers, cutting the end, and cutting by parts.
Human-machine interface device helps convenient operation.
No dropping, leaking, bubbling and overflowing of the filling head.
Adopt high-quality stainless steel materials, which accords with GMP standard.
Main components are imported.
Application scope:
Applicable to packaging liquid medicine, health care products, food, cosmetics and similar other industrial products
Specifications:
1.Max forming depth: 10mm
2.Cutting frequency: ≥10-18 times/Min
3.Packaging efficiency: 10-18 times/Min 8-15 bottles/plate
4.Plate dimension: length 315mm（Max） width 78-108mm（Max）
5.Wrapper: PVC/PE0.3×345mm
6.Filling & packaging capacity: 5-25ml/bottle 0.3×345mm
7.Air consumption: 110L/min
8.Water consumption: 6L/min
9.Total power supply: 12KW
10.Voltage: 380V/50Hz
11.Dimension (Length × Width × Height): 3870×1780×1850
12.Weight (Kg): 3400
